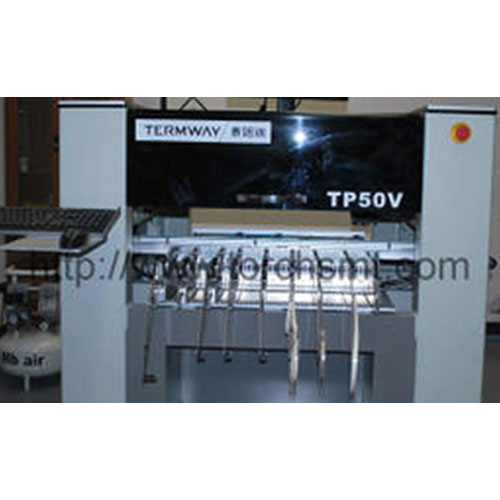

• Technical Data Sheet

Remark:

1．Using imported precision square rail, effectively improve the placement accuracy.

2. Using a unique high-definition optical prism industrial cameras to complete mount high-precision components.

3. With the vision position system, can automatically identify the MARK point, ffectively improve SMT production efficiency and placement accuracy.

4. Automatic visional programming, it is no need to input the coordinates of components by manual, programming is simple, easy to learn for beginners and it is convenient and practical.

5. Standard configuration of automatic nozzle replacement system.

6. Cost-effective automatic placement machine, it is most suitable for mass production in middle scale and personal use.

7. Standard configuration: 4 groups of optical vision registration system, 5 pcs of nozzle and a suit of 43 of 8mm feeder slots of feeder seat.

8. Drive by servo motor with high precision ball screw to achieve, you can complete the duplication of highprecision components mount.

9. Configure variety feeders to meet different mounting of mounting.

10. Configure the special industrial computer with special software, easy to operate.

11. Easy to input the CAD of the PCB.

12. Can complete the program and mount the Circuit board puzzle stably and simplify.

13. The software can display all the puzzle coordinates, and fine tuning some of the coordinates. To achieve highprecision placement.

14. You can set the spacing of each puzzle in the software, and display all the coordinates of discharging based on the distance, also can choose the puzzle no needing to mount in the puzzle.

15. If the circuit board processing have quality problems, can leak location to improve the overall shift.

16. The software can automatically optimize the function of head.

17. Software adds multi-speed transmission features, you can find the best speed through check the moving table and set the speed, so that can increase the stability of the machine in long-time usage.

18. With a high degree of automatic detection and alarm failed components picked up can effectively improve the production quality control.

Standard configuration:

1. Industrial computer 1 set

2. Head 1set

3. Nozzle 5pcs

4. GFTA-48 feeder table 1set

5. MARK camera 2sets

6. QFP high precision industrial camera 1set

7. QFP high clear light source 1set

Optional part:

1. 8mm, 12mm, 16mm and 24mm automatic feeder

2. IC Disc Feeder(GFQN)

3. Components bulk disk(GFSN)

4. Nozzle

5. AQ38 end mirror system(25MM-38MM QFP)

6. Industrial air pump

Technical Parameter:

Max size of the PCB	600×300mm
Max size of the moving	670×620mm
Max range of z-axi moving	100mm
Speed of mounting	2000-3200cph
Expected max speed of mounting	4000cph
precision	±0.02mm
Position way	Vision position
component	Above 0402 and less than30mm pitch, more than 0.5mm IC
program	Automatic data import / video learning / keyboard input
Transmission	XY-axis high precision ball screw with precision guide
Tape feeder	Optional 8mm, 12mm, 16mm, 24mm feeder
Short with feeder	8mm, 12mm, 16mm, 24mm feeder
Quantity of feeder	Can be put 96 pcs of 8MM GFTA-08S feeder, the front and back can be put 48pcs
Quantity of IC dick	No more than 2 pcs
Operation system	WINDOWS XP
Compressed air	80psi(0.5Mpa), flue no more than100L/min
Power supply	220V, 50Hz, 3kW
weight	620Kg
size	1405 × 1400 × 1450mm
