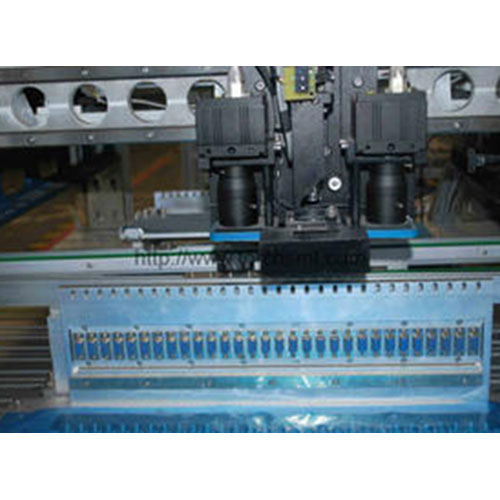

Automatic Visional Pick N Place Machine TP400V-II
- Product Description
Automatic pick and place machine TP400V-11 is the high cost-effective equipment in the market, it can pick and place variety of components by its vacuum nozzle. The machine can mount SMD chip components above 0402, SOIC, PLCC, QFP IC; vision position system which can meet pitch 0.5mm of QFP IC. Beside round datum mark, square PCB pad and ring hole pad can be recognized as datum mark.
- Technical Data Sheet
Features:
1. Automatic Mount by control of software.
2. Quick PROTEL data import or write-in by hand.
3. Visional + machinery position.
4. Visional program system can identify MARK point automatically to improve production efficiency and accuracy.
5. Visional program system can produce X, Y coordinates of all components automatically after confirmed the basic MARK point, and them complete the mounting process.
6. Unique optical prism and high-definition industrial cameras for placing high-precision components.
7. Exact quadrate guide rail, smooth gliding arm for improving mounting accuracy.
8. Air suspended pick-and –place head.
9. Automatic nozzle replacement system.
Optional:
1. Automatic feeder
2. IC disc
3. Automatic PCB transmission system
Main parts:
1. DC servo motor driving system
It uses loop DC servo motor driving system for a high precision repeating accuracy and stability.
2. Vision centering system
Vision centering system can mount 0.5mm pitch QFP IC
3. No-contact flying centering system
Flying centering system can mount most of SMD components include: 0402, SOIC, PLCC & QFP IC.
4. Flexible reference point system(RPS):
In addition to standard Round reference point, square PCB pad and ring PCB pad with hole also can be identified as a reference point.
5. All-purpose automatic feeder
TP400V-ii has 8mm, 12mm, 16mm, 24mm, you can choose to install according to your component type and your required speed.
6. Flexible tray-type station
TP400V can equip 2 tray which is help mount bulk components under the semi-auto mode.
7. CAD/Protel data transfer Except for study the component coordinate by Camera or keyboards input, you can choose CAD transfer software WCAD (optional) to transfer the PCB’s CAD into pick and place data.
8. Buffering nozzle
Buffering nozzle can adjust the pressure automatically according to different components height to avoid the damage due to different component heights or programming errors, it is suitable for various types of pick and place ceramic components and ceramic circuit board.
Technical Parameter:
| Type | TP400V-ii (V: industrial camera at bottom) |
| Max printing size | 400×350mm |
| Max moving range | 400×630mm |
| Z axis max moving range | 70mm |
| Typical mounting speed | 2000-2800cph |
| Max mounting speed | 3500cph |
| Mounting accuracy | ±0.05mm |
| Component available | SMD component (above 0402) and SOIC, PLCC, QFP IC (below 38mm) |
| Position method | visional position |
| Program way | Video study/ keyboards input/ data import |
| Driving way | Y axis uses Industrial synchronous belt drive, X axis uses imported high precision lead screw |
| Automatic Feeder | 8mm, 12mm, 16mm, 24mmfeeder |
| Feeder Number | 1. place 72 pieces of 8MM feeder CFTA-08S, 36 pieces at the front and back each 2. place 60 pieces of 8MM feeder GFTA-08S, 30 pieces at the front, back and both sizes |
| PCB board input system | Automatic (Standard configuration) |
| Automatic Nozzle changing system | Automatic (Standard configuration) |
| IC tray number | 2 at most |
| Operation system | WINDOWS XP |
| Compressed air | 80psi (0.5Mpa) |
| Power supply | 220v, 50Hz, 3kW |
| Weight | 310kg |
| Dimension | 1280×1410×750mm |
