Special Component Mounter Model: T8Y
T8Y Introduction:
1. Specially assembling on standard mounter platform, using the most flexible solution to challenge automation and reduce the cost to the limit.
2. We can provide complete special assemble automation solution, such as shielding cover, plastic film, lampshade, lead soldering piece, key on the cellphone, label and son on. The machine is widely used in the industry of cellphone, car, light, military etc.
3. Dapt to rapidly change in production requirement. By rapidly product switching, the machine can meet the production demands of more kinds of products.
4. Support many kinds of feeding ways and satisfy mixed mounting requirement.
- Product Description
T8Y Function Introduction:
1. The basic mounting platform is high precision mounter T8S, inherited the merits of the equipment, can mount more stable and accurate with high speed.
2. Especially applied to special component placement.
 Lens hood |  Lampshade |  Electrode |  Special component 1 |  Special component 2 |  Special component 3 |
 Mobile accessories 1 |  Lens hood of mobile accessories |  Shielding stent of mobile accessories |  Film 1 of mobile accessories |  Film 2of mobile accessorie |  Plug |
3. Kinds of feeding system with standard configuration. Like, electronic feeder, electronic smart feeder, vibrating feeder, automatic IC skip, vibrating tray and customized feeding device, meeting all kinds of special component placement.
4. The machine can mount 28 kinds of different special component or IC by equipped with automatic IC skip and can non-stop feeding, meeting automation production requirement and improve production efficiency to the most limit.
5. Regarding to different special component, if the present feeding system can not meet the requirement, special feeding device can be customized and meet automation production requirement.
6. Customize certain image collecting system according to different special component, choosing proper light resource and camera lens to achieve the most stable, efficient image collecting, improving the mounting speed as well as stability.
7. Customize certain image distinguishing and dealing methods according to different special components, achieving the most stable placement.
Option:

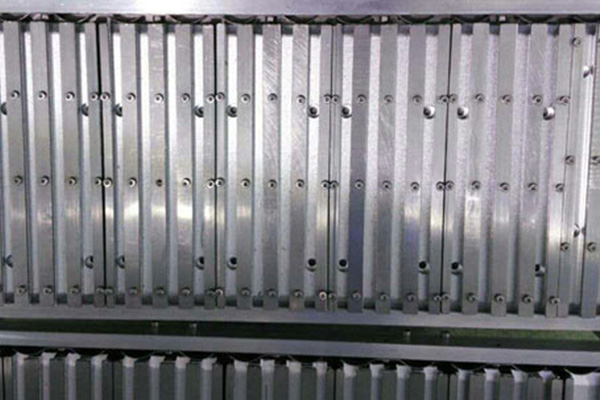

1. GF electronic feeder (8MM, 12MM, 16MM, 24MM, 32MM, 44MM)
2. Nozzle (6 kinds of nozzles. Special nozzles can be customized)
3. QS48 component (Can place IC of 48*48mm)

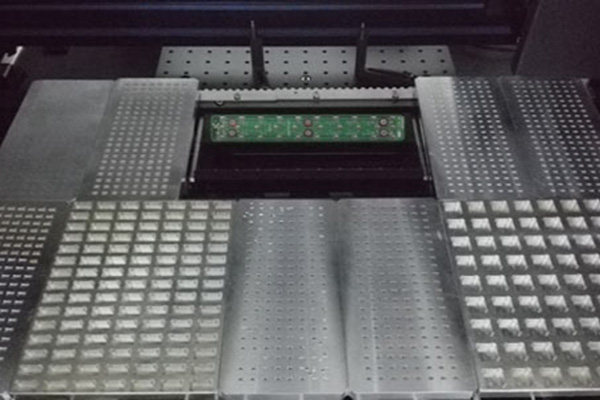

4. Bulk tray (Bulk tray of different size of components)
5. IC tray
6. Short feeder
7. Vibrating feeder

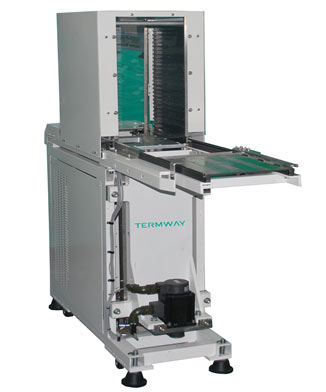

8. IC tray feeding skip(28 flours)
9. Customized feeder
10. Off-line program software
Parameters
| Head Qty | 4 groups of mounting heads |
| The max mounting size | 400×300mm |
| The max moving range | 900×460mm |
| The max moving range of X axis | 30mm |
| Typical speed | 6000-8000cph |
| Theoretical speed | 12000 cph |
| Moving system | X,Y axis use Japanese Panasonic servo motor driving+ high precise industrial lead screw rail+Grating ruler position(X axis can be optional configure imported linear motor) |
| X.Y axis precision | ±0.001mm |
| Repeated accuracy | ±0.015mm |
| Position method | High speed visual position |
| Component available | Resistance and capacity above 0201; IC below 38mm; all kinds of special components (01005 orcomponent above 38mm and other special components need option) |
| Program way | Automatic data import/Video learning/Keyboard input/Off-line programming function |
| Belt feeder | Option: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm electronic smart feeder |
| Feeder qty | GF feeder, can place 72 pieces of 8MM GFTA-08S feeders |
| DF feeder, can place 144 kinds of 8MM components | |
| IC tray no. | IC skip is optional, can place 28 IC tray at most |
| Operation system | WINDOWS XP/ WIN7 |
| Compressed air | 80psi(0.5Mpa), Air fluent 80L/M |
| Power | 380v, 50Hz, 5kW |
| Weight | 1250kg |
| Dimension | 1200×1590×1445mm |
