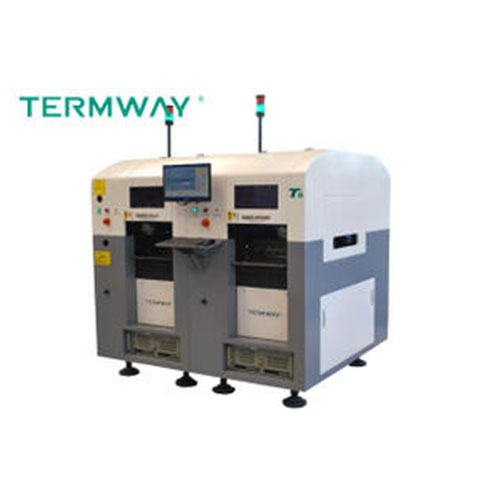

T8 Introduction:

1. What is T8? The homophonic of T8 is Post Hegemony. It is the real" Patch Overlord" in SMT industry in the future.

2. T8 is also the eighth mounting products of TERMWAY with model T8.

3. T8 is a landmark product in the medium-speed pick and place machine.

4. The min mounting component is 01005.

5. The max mounting size: 120*90mm (Optional)

6. T8 can mount up to 104 kinds of components at most.(only 8mm)

7. It can place at most 4 IC trays.

8. Through the modular design, it can easily go upstairs by the elevator without smashing the bricks and windows.

Function introduction:

1. With super high precision moving platform technology which is made by integrated design of Natural granite. Make sure T8 can get to use for more than10 years without any effect on moving precision. Meanwhile, integrated structure ensures a very excellent function in shock resistance.

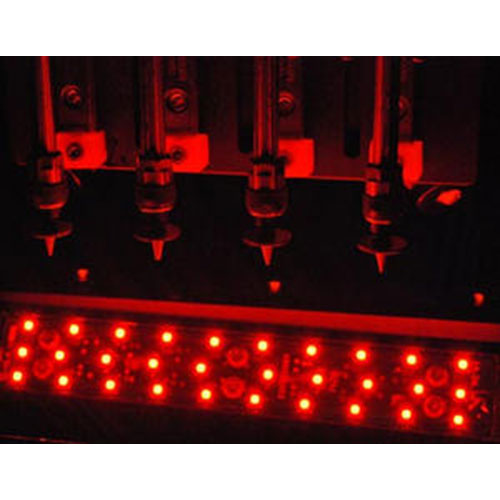

2. Multi-mount head can be installed seamless, and easy to change according to different requirements. Can be equipped with multi-functional mount head( Model: TH62), High speed mount head(Model: TH61) and high speed multi-functional mount head (Model: TH64) Change mount head or change mount head into different precision

3. International high speed moving system, original European imported Magnetic scale and high precision linear motor was adopted, reduce the mechanical wear to the greatest extent possible, make sure the Z axis’s high precision high speed performance. Up to 4M/S.

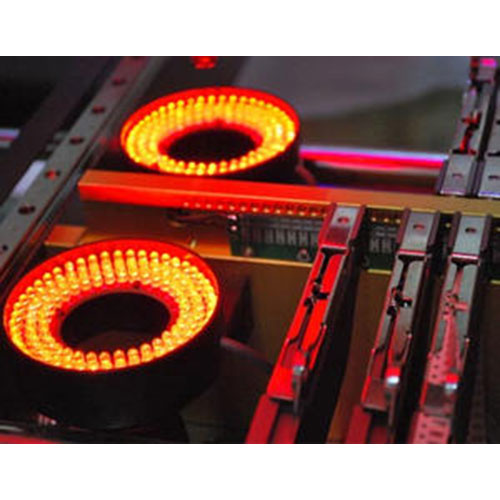

4. Industry leading vision system: Germany industrial digital cameras and high quality lenses is used, make sure the high quality and high accuracy.

5. Configured SMART feeder, the real electric intelligence feeder. The machine can automatic recognition when the machine put anywhere, when you put the feeder, you can use, save the programming time of mounter pick, you save more than 1/3. Probe contactless smart feeders can make you more easy to loading and unloading the component.

6. The patented technology of non-stop scanning photos makes high-speed placement come true. Maximum vision mounting speeds up to 28000CPH and the actual placement speeds up to 15000CPH.

7. Configurable vibration feeder, IC tray and special components bulk trays can meet your all kinds of specific needs.

8. Intelligent board transmission system can automatically adjust the width and plywood. Complete your automated intelligent production. The factories of Termway around the world have set up the quality management system and environmental management system, and achieved international authentication of ISO9001: 2008 and ISO14001: 2008.

1	Mounter head	8 heads
2	Mount area	50mm×50mm, 350mm×350mm, Once Plate feeding 50mm×50mm, 1200mm×350mm, Optional Multiple Plate feeding
3	Z axis max move range	30mm
4	Typical speed	10000cph--15000cph
5	Theoretical Max mount speed	22000cph
6	Moving System	X axis moving coil motor + linear encoder Y axis servo motor drive + ball screw + linear encoder
7	X.Y axis precision	±0.001mm
8	Repeat mount precision	±0.015mm
9	Position manner	Visional position
10	Component available	Minimum 01005-38 * 38 * 8.5mm (48 * 48 optional)
11	Programme method	Automatic data import/Video learning/Keyboard input
12	Type of component	MAX104 pcs GFTA-08S feeder +4 pcs IC
13	Feeder NO.	1. MAX104 pcs of GFTA-08S feeder 2. Single group adjustable feeder MAX90 pcs GFTA-08S feeder 3. Double group adjustable feeder MAX76 pcs GFTA-08Sfeeder 4. 3 pcs IC tray, MAX78 pcs GFTA-08S feeder 5. 4 pcs IC tray, MAX52 pcs GFTA-08S feeder 6. Single group adjustable feeder, 3 pcs IC tray, MAX64 pcs GFTA-08S feeder
14	IC tray NO.	The maximum number 4pcs
15	Operation system	WINDOWS XP/WIN7 32bit
16	Compressed air	80psi (0.5Mpa, gas flow ≥160L / M)
17	Power	380v, 50Hz, 25kW
18	Weight	1700kg
19	Dimension	1685(L)×1550(W)×1440(H)

Automatic high-precision placement machine made T8 2014 annual China SMT Industry Innovation Award:

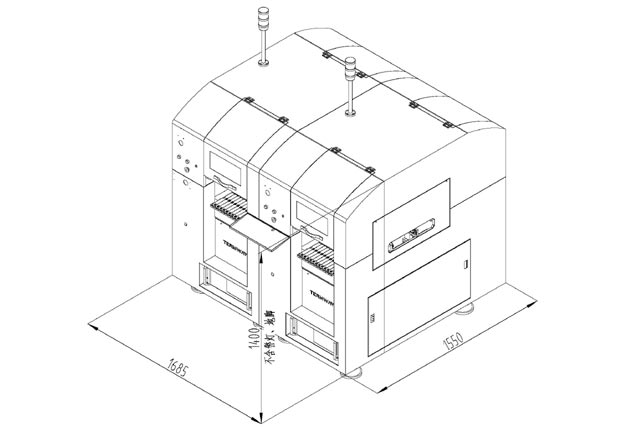

Automatic high-precision placement machine T8 Dimensions dimensional map:
