High-precision Multi-function Pick and Place Machine T8S
- Product Description
T8S Technical Parameters:
T8 is one high-precision mounting machine that can mount 0201 and can mount 5 kinds of IC trays at one time.
T8S, one amazing high-precision mounting machine!
Selling point:

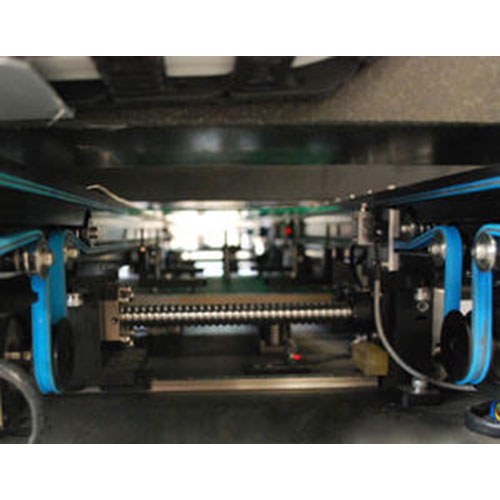

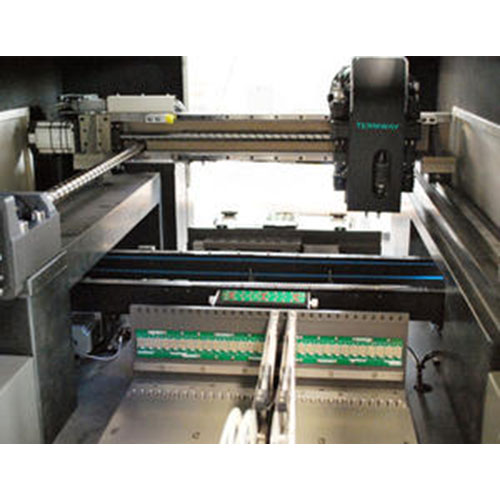

1. World-class high-speed moving system, with original imported high-accuracy ball screw and high-precision rail, ensuring the machine keep high-precision and stability after long time use.
2. The patented technology of non-stop scanning photos makes high-speed placement come ture. Maximum vision mounting speed up to 8000CPH.
3. Configurable vibrable feeder, IC intelligent feeder, can pick and place 5 kind of QFP, BGA etc.

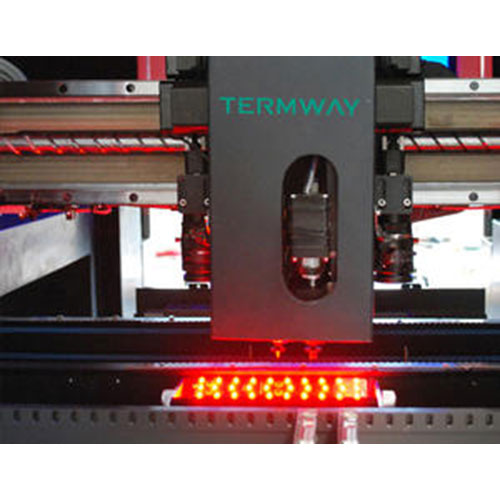

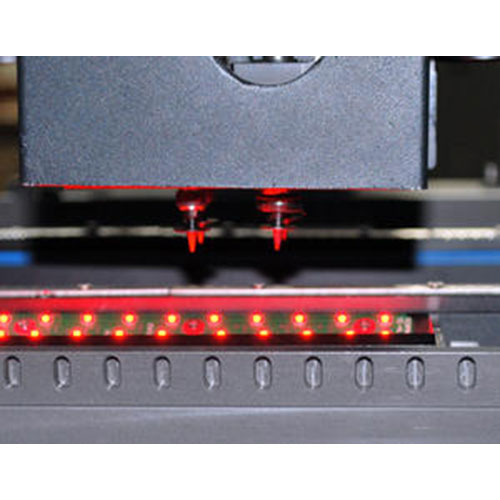

4. Adopt the heads with proprietary technology, the speed of pick and place have been improved effectively. The actual mount speed up to 6500-8000 cph
- Technical Data Sheet
| Mounter headr | 4 Heads |
| Mounting Size | 50mm×50mm～430mm×250mm |
| Max Z Axis move range | 30mm |
| Typical speed | 6500-8000cph |
| Theoretical Max mount speed | 10000cph |
| Moving System | X axis moving coil motor + linear encoder |
| X.Y axis precision | ±0.001mm |
| Repeat mount precision | ±0.02mm |
| Position manner | Visual Position |
| Component available | Above 0201 below 30mm IC(Above 30MM is optional) |
| Programme method | Automatic data import/Video learning/Keyboard input |
| Feeder | 8mm, 12mm, 16mm, 24mm, 32mm, 44mm GF feeders (Optional) |
| Feeder NO. | 62 pieces of GF-08mm (maxmum) |
| IC tray No. | TF-05 Electric intelligent IC charging wagon |
| Operation system | WINDOWS XP, WIN7 |
| Compressed air | 80psi (0.5Mpa, gas flue≥100L/M) |
| Power | 380v, 50Hz, 7kW |
| Weight | 980kg |
| Dimension | 1450(L)×1100(W)×1440(H), (Excluding the anchor and lights display, etc) |
