• Technical Data Sheet

Introduction:

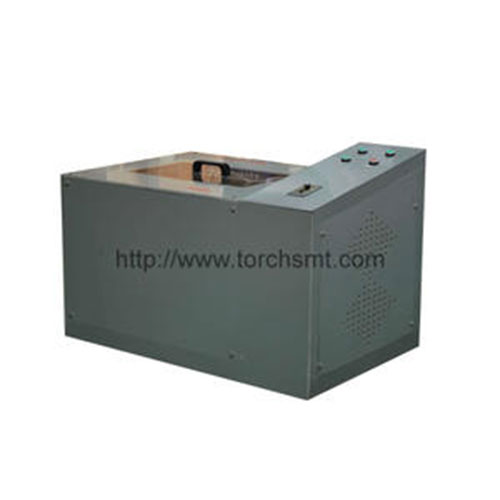

This Spray Etching Machine extends the application about etch technology. It is widely used in laboratory and small-batch former manufacture. Develop, cleaning, etching can be finished by one equipment. It means more convenient. The particular spray technology can save the developing agent and the developing time greatly.

Remark:

Features:

1. The whole body is made of light blue plastic. It is beautiful and easy to observe when being used.

2. Unique spray technology can save the developing agent and the developing time greatly.

3. Independent drainage design in every groove, convenient operation.

4. The clamp size of PCB can be adjusted.

5. Rapid Heating, constant temperature can keep at 45℃.

6. Developing groove and etching groove allocates thermometer, it is convenient to measure the temperature.

7. Anti-corrosion salver.

8. Adjustable corrosion ranged.

Add: If the user had any special request, please arrange with us.

Technical parameter

Max PCB developing size	430*250mm
Etching way	double spray and filter
Etching speed	90-120 second
Etching capacity	6-8L
Spray head number	8
Temperature	40-50℃
Power	1000W
Power supply	AC220V
Dimension	850*450*370mm
