• Technical Data Sheet

Introduction:

Along with the development of the electric technology, SMT is used more and more widely. The mini-type product line which is made by Torch is good for the popularization of SMT. Torch will contribute itself to the development of the electric industry of China.

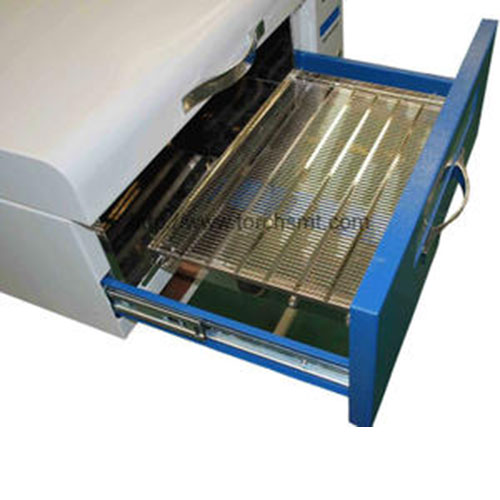

According to practical requirement of the clients, T200A is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It is been adapted in research center, war industry, middle- and small-sized corporation, small Private Corporation and other electronic production companies.

Main features:

A. High precision. Multi-function. It satisfies all welding requirements of 0201 resistance and capacitance, fine spacing QFP, SOP, PLCC, BGA, CSP and so on. It meets the requirements of small batch and multimode product. It is also suitable for laboratory to take research.

B. Energy-saving with high efficiency; A machine with several uses. It can be used to solidify SMT -Adhesive.

C. Long life and smooth capability.

D. Visible operation. It is the best choice for teaching and scientific research.

Main technical parameter:

Item	Parameter
Temperature control segment	20-40 segments. the numbers of temperature control segment and the temperature control accuracy are the highest in Market. User can set the segment according to the requirements in soldering machine.
Temperature-zone numbers	Single segment and multi-segment control
Temperature control system	Automatic temperature control with PID intelligence microcomputer. SSR non-contact output.
Temperature accuracy	±2℃
Warm-up time	2min
Temperature range	Room-temperature-350℃, high temperature resistant material, it is suitable for small-batch lead-free soldering.
Heating supply	Infrared ray + Hot air convection
Effective working table area	360mm*230mm (less than A4)
Welding time	3min±1min
Temperature curve	More temperature curve can be set in soldering machine according to the requirements.
Cooling system	Transverse flow equal cooling
Rated voltage	AC single-phase, 220V; 50Hz
Rated power	3.8kW
Mean power	1.6kW
Weight	45kg
Dimension	Length*width*height 700*460*310mm
