• Technical Data Sheet

Features and function:

Flux spray system

A function of flux spray device

1 nozzle: import nozzle, better spray.

2 air system: AIRTAC electromagnetism valve, anti-corrosive pipe

3 moving nozzle system: air cylinder driven, spray speed and spray width can be adjusted by handle.

4 filtration flux system: collecting device is made of multi collecting lay, it is convenient to clean.

5 flux controlling: anti-corrosive controlling flux and display flux.

B function of flux foam device

With foam function, inner foam pump, it don’t need outer air supply, it is convenient to spray flux.

1 preheating temperature range: room temperature—260℃.

2 controlling way: with PID controlling to make welding process.

3 Heat: infrared heating, temperature uniformity, rapid speed, PID supply heat.

4 Preheating security: surface temperature is lower than fire point of flux.

5 Preheat: it can meet preheating need of batch PCB welding, uniformity temperature, small temperature differences of PCB.

Welding system features:

1 Material: 316 stainless steel

2 Capacity: 100kg double wave crest capacity

3 Height range of wave crest: 0—8mm adjustment and keep wave crest balance.

4 Power consumption (heater): 6kw, uniformity heat, long life. It will take 1 hour to melt tin. This can save 6kw during melting tin and save 3kw during constant temperature.

5 Unique nozzle: double wave crest design, with unique flat wave which is stable and reduce SMD leaking solder.

6 Heat controlling system: PID control, accuracy is ±2

7 Moving tin pot: in and out can be finished by hand.

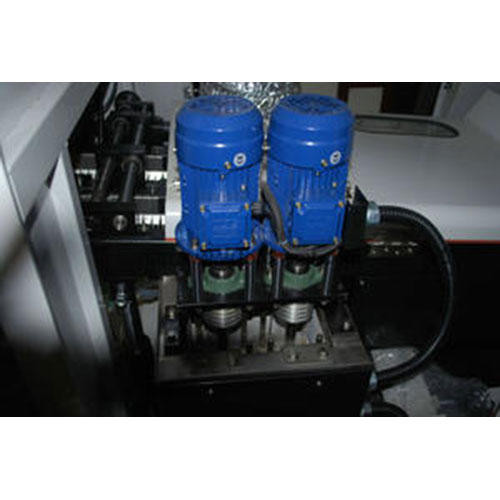

8 Motor of wave crest: import motor, running stable.

9 Tin pipe: screw thread stem

Cooling system

Cooling motor: unique cooling design, it can achieve import device effect.

Transmission system

1 chain: stainless steel chain, anti-corrosive, ametabolic.

2 rail system: special strong aluminum

3 speed: 0—1800mm/min

4 accuracy: motor is from Taiwan, it is easy to adjust and maintain

Controlling system

1 buttons on the panel: manual/ automatic control, speed can be set, temperature can be display.

2 protect short circuit: with short circuit protection, with Sanling air switch protection in main power and tin pot of preheating zone, with fuse power in controlling system.

3 urgent stop protection: there are 2 urgent stop protection in the machine, please cut off power in urgent condition.

4 whole machine controlling: relay controlling.

5 transmission speed: Taiwan motor makes sure stable speed.

6 wave crest: Taida transducer makes wave crest flatter.

7 over-current protection: over-current protection with transducer, it will cut off power when current is over to make motor safe.

8 modularization wiring device: there are main wiring modularization and controlling modularization.

	Specification	TB780D(double wave crest)
1	solder type	lead / common solder
2	max width of PCB	200mm
3	Components height	Above ≤130mm under ≤8mm
4	Capacity	100KG
5	Preheating length	600mm
6	temperature accuracy	±2
7	spray way	Foam
8	temperature range	room - 300
9	wave height	0—8mm, keep balance wave crest
10	heating controlling	PID
11	speed	0—1800mm/min
12	start power/normal power	12KW/6kW
13	preheating temperature	room—260℃
15	Width adjust	Manual adjusting
16	Transmit angle	3－8
17	Direction	right→left
18	controlling accuracy	Taiwan motor
19	Weight (Kg)	650KG
20	Dimension L x W x H(mm)	1400*1000*1500MM it is 2100mm when the machine include loading and cooling system.
