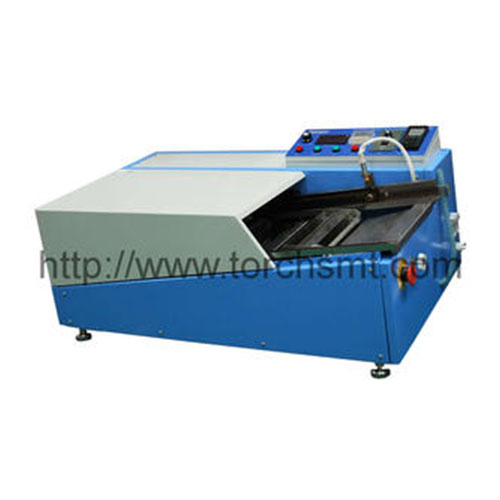

Desk Wave Soldering Machine TB680

  • Technical Data Sheet

Desk Wave Soldering Machine TB680 has been developed by Torch, It is the first equipment in small type wave soldering field. TB680 is suitable for research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. It is a desk-type, taking up small room, with multi-functions, energy-saving and high efficiency. The operation is easy and especially suitable for small and middle batch production.

Main Technical Parameters
max power3kW
pot capacity37Kg tin
max PCB size200X270mm (max)
temperature range200-300℃ LED display
preheating temperature70-90℃
height range of wave crest5-12mm
Melting time80min
flux sprayfroth
power supply220V±1%V AC single phase 50Hz (please connect power to the ground)
transmission speed0.5-3m/min
net weight48Kg

There are 6 parts: flux, preheating, soldering, electrical controlling, exhaust unit and convection unit.


Flux parts are made of air pump, air tube, pin valve, filter, froth tube and flux box.

There is flux belt on the froth tube, PCB whose side has chips is on the top and touch flux, the side will has flux film.


It is made by melt board with resistor to provide heat for PCB.


It is made by tin pot, heating board, wave pump and tin.

1 tin pot

2 clapboard

3 nozzle

4 regulator

5 wave pump

6 channel


Figure 3: The solder will be divided into upper and lower levels by clapboard, the lower for the high-pressure layer, the upper layer for the low-pressure layer, liquid solder will be into high pressure layer driven by wave pump, the solder in the high pressure layer rotate and then pass regulator, it will overflow from the nozzle, the wave crest form and then fall into low pressure layer because of gravity

4 electrical controlling

With modular structure, transmission speed, solder temperature, preheating time and others can be adjusted and controlled. Working principle is shown in Figure 4.

exhaust unit

It is made of cover, air fan, air cover and air tube. All exhaust generated in soldering will be eliminated.

convection unit

It is made of chain, rail, drive and pallet. PCB will be sent in flux unit, preheating unit and soldering unit by convection unit.
