• Technical Data Sheet

Standout:

1. 1.5mm cold-roll steel sheet, impact molding formed for one time.

2. TORCH patent of automatic door control technology ? on tray.

3. 8K mirror 314 stailess steel as furnance.

4. Unique hot air cycling system in furnance.

5. Heating system uses TORCH?heating technology.

6. T200N uses the 6th generation of multi-chanel high precision temperature control system.

7. LED displayer temp control interface, digital measuring scale shows power output.

8. America Omega sensor as temperature testing system, which is the only one in China.

9. Waste smokefiltration system is used on TORCH reflow oven.

10. Appearence, color.

11. 2 suits of independent protection device on electric control system.

12. Firstly developed proffesional temperature control software of desktop reflow oven, small oven steps into computer-control age TORCH, as a famous brand Desk Reflow Oven supplier, enjoy good reputation in China and oversea market. it own its own core technoly in SMT industries that other supplier doesn't have.

13. Intelligent software system of desktop reflow oven.

14. Software can satisfy multi operation system and multi language environment of chinese and english.

15. Remote control function.

16. Realize RS485 communication and USD interface.

17. High temperature protection function.

18. Configure cool-down system on oven.

19. 4 layers of industrial package case.

20. Stailess steel switch on operation panel.

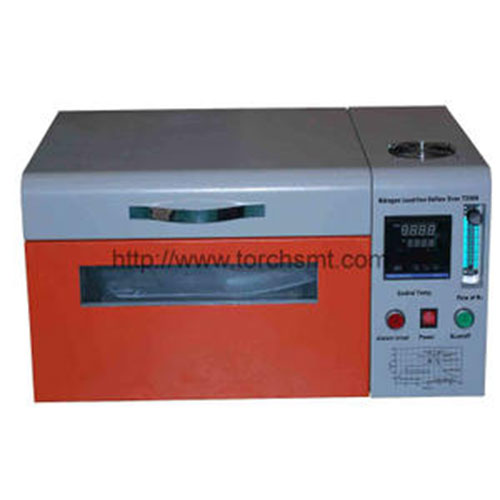

21. The first Desktop Nitrogen reflow oven in SMT industry, selling well for 6 years.

22. T200N+ is the only one with real-time temperature testing function.

Remark:

ROHS directive has publicized. During the welding process with lead-free, all of the electron manufacturers are thinking one question how to ensure the quality of lead-free welding. It is all known that the lead-free welding in quality control is more difficult than lead welding. In the generation of lead-free, Torch always try to satisfy the requirement of the trial-manufacture of lead-free welding and the manufacture of small batch and high quality for many years.

According to the practical requirement of small and middle sized electron factory, the small batch trial- product in research center, T200N is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It is been adapted in the research center, war industry, middle and small-sized corporation, small Private Corporation and other electronic production companies.

Unique features

▲ High precision, multi- functions.

40 segment temperature curves can be set. It satisfies the welding of different component.

▲ Computer control.

T200C breaks through the shortages such as the difficulty of meter control program, the difficulty of modify parameter, limited storage of temperature curve. It adopts the software for temperature control, which is produced by Torch itself. The temperature curve can be set intuitively. And a large number of temperature curves can be stored. Analysis and statistics function, printing function.

• Real time testing with temperature curve.

Test the temperature curve of soldering at every time. During the process of welding, the actual temperature can be displayed at the same time. It is convenient to adjust and control the lead-free curve. Especially control the heat preservation zone and the melting zone.

▲ Viewable operation.

The real time display of temperature and the real time observation of the welding process. It is the best choice for science research and teaching.

Technical instruction:

Item	Parameter
Temperature control segment	40 segment. The segment can be set in computer according to the actual requirement.
Temperature-zone numbers	Single-zone and multi-segment
Temperature control system	PC control system, SSR non-contact output.
Temperature accuracy	±2℃
Warm-up time	3min
Temperature range	Room-temperature -360 ℃
Heating supply	Infrared ray + Hot air convection
Effective working table area	230mm * 270mm (less than A4)
Welding time	3min±1min
Temperature curve	It can be set, adjusted and tested according to the actual requirement.
Cooling system	Transverse flow equal cooling
Rated voltage	AC single-phase, 220V; 50Hz
Rated power	3.8kW
Mean power	1.6kW
Weight	45kg
Dimension	Length*width*height 820*460*310mm
