Manual Mounter TP38V

  • Product Description

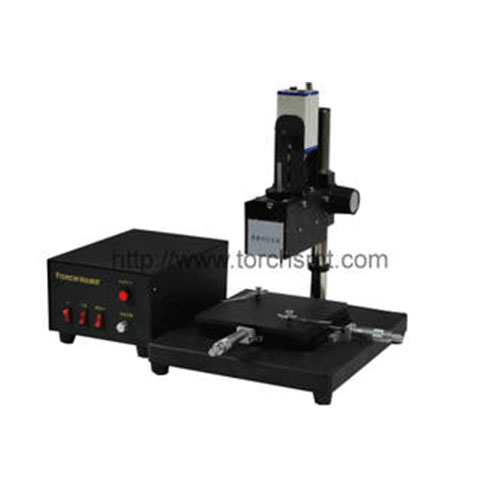

TP38V have a table for X Y and Z axes direction, and the mounting head can circumrotate freely, that make sure the accuracy keep at 0.01mm. With the vacuum generator can pick all kinds IC component. For four-dimensional direction adjusting, high clear optics CCD video and professional plating Len can mount the QFP. PLCC and some other high accuracy component easily. That can avoid the error which caused by the hand shivering when mounting. Additionally, the light also advances the accuracy

  • Technical Data Sheet
Manual Mounter TP38V

TP38V have a table for X Y and Z axes direction, and the mounting head can circumrotate freely, that make sure the accuracy keep at 0.01mm. With the vacuum generator can pick all kinds IC component. For four-dimensional direction adjusting, high clear optics CCD video and professional plating Len can mount the QFP. PLCC and some other high accuracy component easily. That can avoid the error which caused by the hand shivering when mounting. Additionally, the light also advances the accuracy.

Remark:

Technical parameter of TP38V:

1. Mechanical four-dimensional degree freedom: X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Z axis can be adjusted freely from up and down. At the same time the angle θ can be freely circumrotate.

2. Vision system: high clear optics CCD video and professional plating Len can mount the IC component easily.

3. Image: max 50 times

4. Light source: curve light source can turn to any direction to make the image clearer.

5. Weight: about 7.5kg. Dimension: 280mm x 260mm

6. Setting accuracy: 0.01mm
