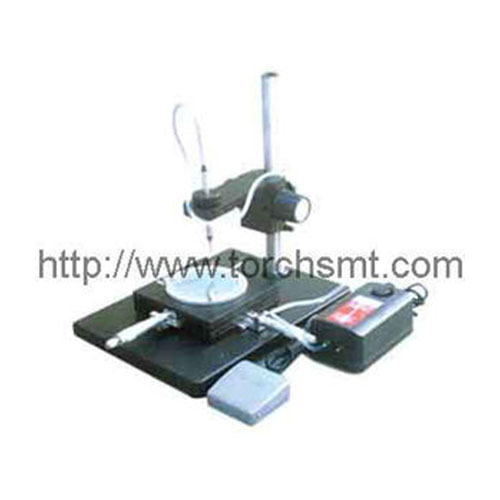

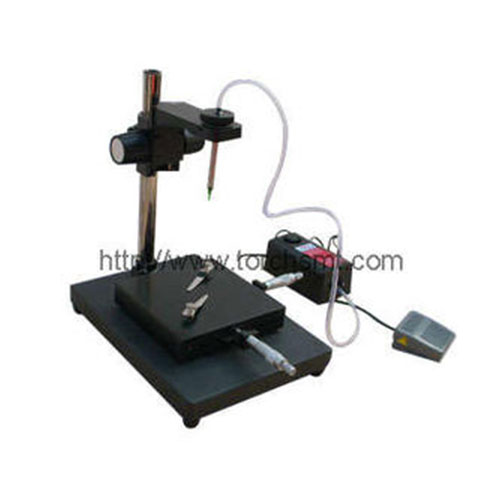

Manual Mounter TP38

  • Product Description

The Mounter P38 is used together with an antistatic vacuum absorb-pen. The air supply is controlled by a foot switch, all this can achieves exact location and quick mounting of any tiny spacing on chips such as QFP, PLCC, BGA and so on. At the same time X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Accuracy of adjustment can be 0.01mm, which make the mounting chips more effective and easier even in the tiny spacing.

  • Technical Data Sheet
[Trade name]: Manual Mounter TP38 [Tel]: 0086-10-51669522
[Manufacturer]: Torch Technology[Model]: TP38
[Introduction]:
Technical parameter of TP38:
1. Mechanical four-dimensional degree freedom: X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Z axis can be adjusted freely from up and down. At the same time the angle θ can be freely circumrotate.
2. Weight: about 6.5kg
3. Dimension: 280mm x 260mm
4. Setting accuracy: 0.02mm
Remark:

The Mounter P38 is used together with an antistatic vacuum absorb-pen. The air supply is controlled by a foot switch, all this can achieves exact location and quick mounting of any tiny spacing on chips such as QFP, PLCC, BGA and so on. At the same time X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Accuracy of adjustment can be 0.01mm, which make the mounting chips more effective and easier even in the tiny spacing.
