• Technical Data Sheet

Introduction

I. Preview

T1200LED is the most economic and high precision LED screen printer, is the most suitable for mass production of LED strips and lamps. PCB board is faxed on flexible working stable, the stable can hold single size and double-size circuit board, the adjustment of PCB board position, movement of stable, the up-and-down of squeegees is guided to move by high precision guiderail, cooperating with invert motor, which will confirm the accuracy of movement and repeat. T1200LED is the best choice of LED circuit board.

II. Feature

1. Japanese high precision motor and liner guiderail to make scraper seat more stable.

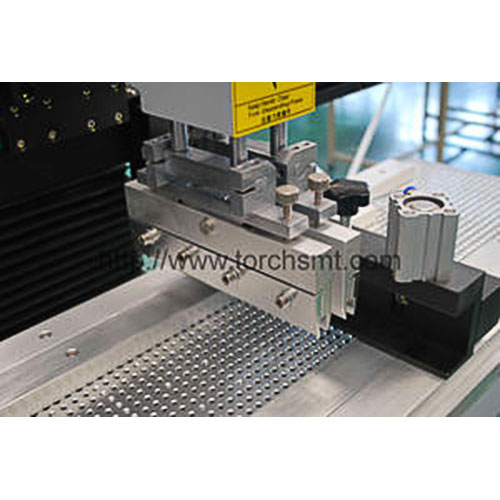

2. Double squeegees, pressure can be adjustable, precision throttle valve setting the speed of squeegee’s up and down to avoid Resonance.

3. Squeegee seat can lift forward for 45°. and fix to help download of squeegee and clean of frame and stencil.

4. The head part of printing can move towards and fix to match the drawing of frame and stencil for better printing effect.

5. The space of working stable and frame is on the same level, cooperating with micro-adjusting handle for setting adjustment.

6. Machinery arm can be adjusted for different sizes of circuit board of 650—1200mm

7. Groove and position PIN on working stable, sample set and fast change, suitable for single and double-size board production.

8. Correction uses working arm (steel) to move, cooperating with board (on stable) X.Y.Z, correction and adjust is fast and accurately.

9. Electronic movement uses micro-computer PLC control, human-computer touch panel control, single or double time, manual or automatic printing is optional.

III. Technical Parameter:

1. Max print size of PCB board at X, Y direction: 1200*300mm

2. Working stable size at X, Y direction: 1200*300mm

3. Max frame size at X, Y direction: 1300*550mm

4. Min frame size at X, Y direction: 330*370mm

5. Range of micro-adjustment: X, Y± 10mm, φ± 30°

6. Power supply: AC220V single phase, 50 Hz

7. Dimension (MM): 1850*890*1760
