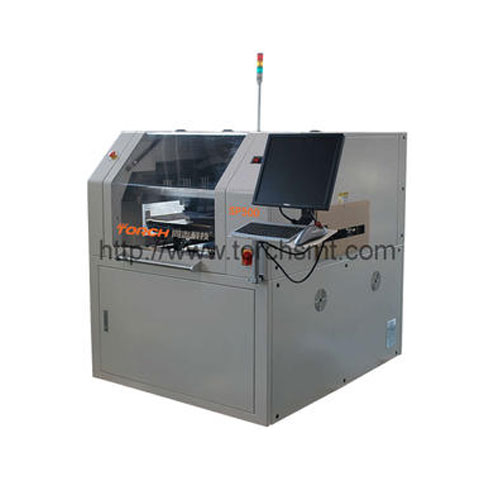

• Technical Data Sheet

SUMMARY:

New image recognition system- geometric match

High-precision servo drive system

PCB positioning system

Many kinds of snap-off

Torch special manual/automatic adjusted plate

Smart stencil structure clamping

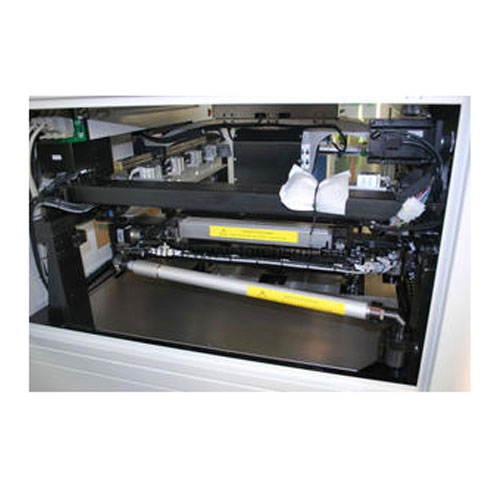

Automatic and effective stencil cleaning

Easy to maintain the electrical separate structure

2D solder paste printing quality inspection and analysis

Easy to use user-friendly Chinese/English operate interface

Technical Parameters:

Screen Frames	Min Size	737x300mm
	Max Size	737x737mm
	Thickness	25~30mm
PCB Min Size		50x50mm
PCB Max Size		430x410mm
PCB Thickness		0.4~6mm
PCB Warpage		11mm including PCB Thickness
Transport Height		910±50mm
Transport Direction		Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed		Max 1000mm/s Programmable
Board Location	Support System	Magnetic Pin Automatic Up-down table
	Clamping System	Patented over the top clamping, side clamping, vacuum nozzle
Print head		Integrated drive system
Squeegee Speed		0~300mm/sec
Squeegee Pressure		0.3~0.6MPa
Squeegee Angle		60°/45°
Squeegee Type		Stainless steel (Standard), plastic
Stencil Separation Speed		0.1~20mm/sec
Cleaning System		Dry, Wet, Vacuum (Programmable)
Table Adjustment ranges		X:±10mm; Y:±10mm; θ:±5°
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<20s (Exclude Printing & Cleaning)
Product Changeover		<5Min
Air Required		0.4MPa-0.6MPa
Power Input		AC:220±10%V, 50/60HZ
Control Method		PC Control
Machine Dimensions		1900(L) x 2050(W) x 1500(H)mm
Machine Weight		Approx:1300Kg
