• Technical Data Sheet

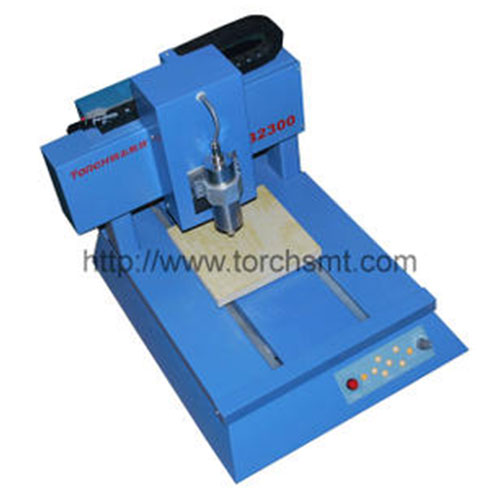

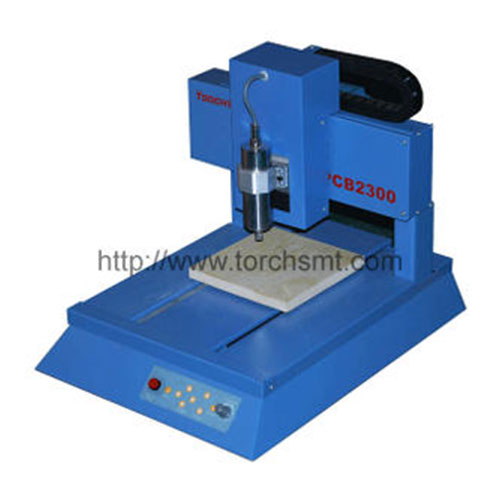

Introduction:

Drilling in the copper board

Control the depth of milling, strip unnecessary copper to form wire pad.

Directly set and reset origin.

Virtual processing software, preview the processing path.

Display the real process.

Multi-holes at once, save the need for frequent tool change process.

Resume drilling, stop and restart at any position.

Combination of drilling, set two knives, shorten process time to max degree.

Select any region to drilling to meet high precision.

Intelligent control the speed, optimize the speed according to tool.

Advantages:

It is available for both sides and easy to operate.

The speed can be changed, you carve minimum line and stop when process.

The re-drilling and region-drilling function, to make up some cases than the copper is not carved through.

5 position holes, more accurate position.

Adjust Z axis when process to avoid can’t drill because the PCB is not level.

Milling PCB function. Mill the PCB to keep the PCB level after repeated drilling and carving. Moreover, you can move the holes in the board to position the double-side board.

The test carved function to ensure the copper will drilled well to the great degree.

To drill the arc edges.

Parameters:

Model
Workable area	200*200mm
Work side	Single/double side
Motor	X Y Z axis step motor
Main shaft speed	60000rpm
Max moving speed	2.4m/min
Least line diameter	6mil(0.1524mm)
Least line gap	8mil(0.2032mm)
Drilling depth	0.02-3mm
Drilling diameter	0.4-3.175mm
Work speed	20mm/s (Max)
Drilling speed	100strokes/min(Max)
Operate ways	Semi-automatic
Communication interface	RS-232
PC system	CPU: PⅢ-500MHz, Memory:256M
Operation system	Windows XP/Vista
Power	220V 50Hz
Weight	65kg
Dimension	490*570*490mm
