• Technical Data Sheet

Introduction:

Full automatic visual 3-axis/4-axis precision dispenser is a general electronic production equipment, compact structure, easy-operation, stable function, economical and so on, which is integrated product by motion control technology and dispense control technology. It is widely used in electronic components manufacture, PCB board assembly, electrical products production, IC packaging, precision machinery, bio-medicine, light industry, packaging, food and other industry.

Structure:

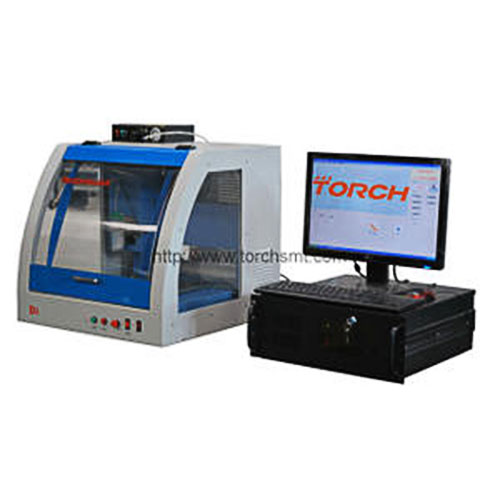

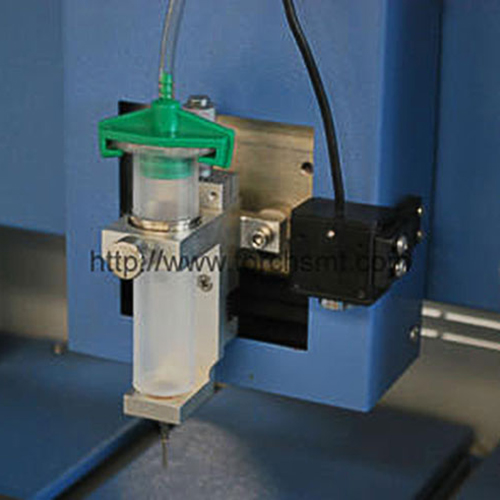

Automatic visual 3-axis/4-axis precision dispenser, which structure and dimension as below picture show, it consist of Y-axis motion platform, X-axis, Z-axis, configured with standard industrial computer and control software. It complete motion control and dispensing control by the computer for easy operate.

Features:

◆ With CCD visual position system, high precision

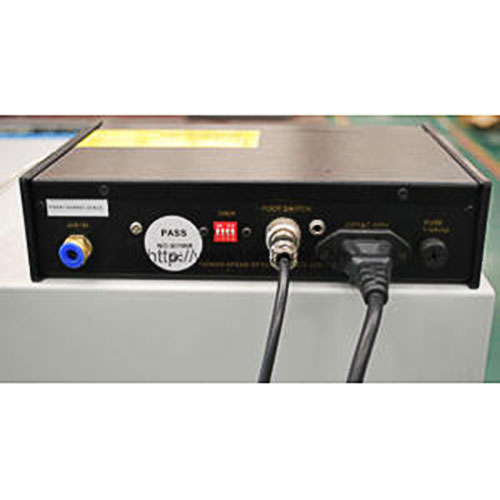

◆ Computer control + professional dispense control system

◆ High quality dispense and motion performance

◆ With visual teach, DXF file automatic conversion

◆ Control 3 axis/4 axis

◆ Precision screw with high-performance motor, complete high precision motion control

◆ With dispensing quality visual detection function

◆ Small size, easy operate, reliable and long-term work in variety of environments, long-term work.

◆ Effective working area:

X-axis: 300mm (dispensing head left and right movement)

Y-axis: 200mm (table back and forth movement) (300mm optional)

Z-axis: 50mm (dispensing head up and down movement)

◆ Configure with safe cover and exhaust filter function, more environmentally and safer.

Technical parameter:

Model	D3	D4
Working range	(X)300 * (Y)200 * (Z)50mm	(X)400 * (Y)300 * (Z)50mm
weight	98kg	108kg
Transmission	High precision ball screw	High precision ball screw
Identify accurate	X-axis/Y-axis: 0.0016mm Z-axis: 0.0125mm
Operate mode	Point to point, straight lien to arc imputation
Program software	Offline program (10 set)
Max load	8kg
Host computer	Lenovo /hp
Panel control	Reset, emergency, Power
Barometric pressure	0～6Kgf/C㎡
Work temperature	5-40 °C
Work humidity	20-90% no condensation
Power	220VAC 50HZ
Dimension	(L)600 * (W)615 * (H)620mm	(L)720 * (W)715 * (H)620mm
