• Technical Data Sheet

Introduction:

Table three axes dispensers, which are universal electro-equipment, have been widely used in the fields of electro-element making, PCB assembly, wiring making, IC encapsulation, exact apparatus, biomedicine, light industry, packing, food and so on. Our products take advantage of variational and dispenser controlling technology and have the advantage of easy operation, stable fuction, and economical.

Structure:

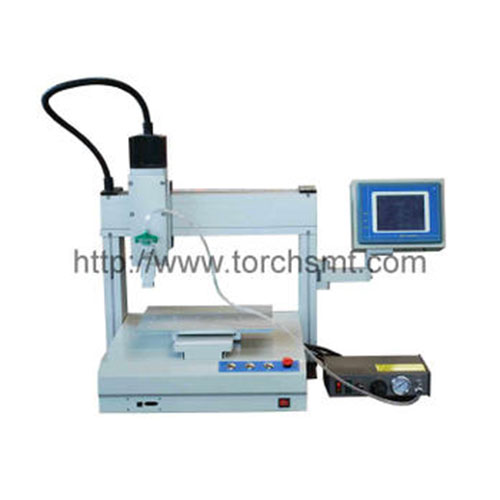

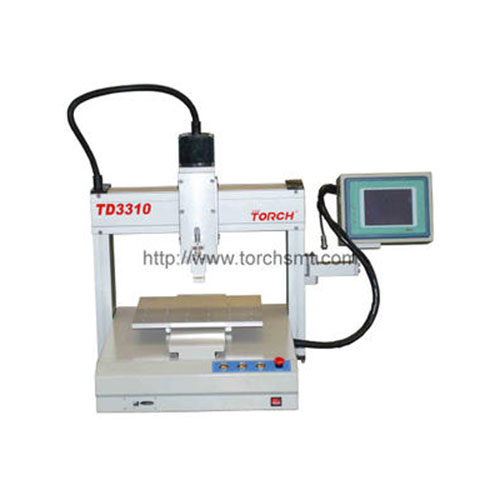

Table three axes dispensers have the compact structure and beautiful exterior. They assist of Y axis variational controling panel, X and Z axis. It is convenient to control the process of dispenser with the touching-screen controller.

Remark:

1. Four axes control, high speed and precision, excellent dispenser and motility function

2. External Chinese touching screen controller easily to revise exactly, high quality, improve efficiency, convenient and reliable.

3. The best price

4. Effective scope: X axis—300mm (could move to right or left)
Y axis—300mm (the worktable could move forward or backward)
Z axis—100mm (the head of the dispenser could move up or down)

5. The quickest speed: X axis—800mm/s
Y axis, Y2axis—800mm/s
Z axis—300mm/s

6. Repetition precision: ±0.02mm

7. Drive method: step motor laser & synchronous belt

8. Most bearing: worktable—8kg, Z axis—3kg

9. Controlling method: port to port, beeline and arc

10. Programme method: touch screen control, PC program input
11. Program capacity: 100 programs/6000 ports

12. Power supply: AC220V

13. Air pressure: 0～6Kgf/C㎡

14. Dimention: 760mm (L) *660mm (W) *640mm (H)

15. Weigh: about 45 Kg

16. Panel control, start, reposite, sease

17. Programme interface: Chinese/English 5.7 inch touch screen instructing machine
