• Technical Data Sheet

Introduction:

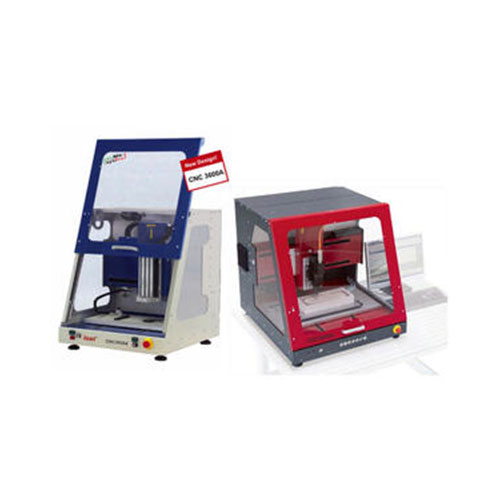

CNC3600A Series: it is particularly suitable for making precision double board; with automatic replacing system which is standard. precision screw with three-axis servo controller which are standard; X Y axis precise controlling;

High precision repetition to ensure continuous error less than 1mil.

Features:

A. Advantage: engraving double board, with engraving, drilling and cutting.

B. High efficiency: It will take a few minutes to complete a circuit board.

C. High precision: high precision screw with three-axis drive system to ensure high-precision of transmission carving.

D. Convenient: easy to install hardware and software which can engrave a variety of circuit boards.

E. Confidentiality: There is no exterior manufacture, laboratory can complete the entire process.

F. Chinese operating software, easy to use. Memory engraving process which can continue to complete at any break.

G. Isolator and dust cover for three sides, it is suitable for multi-angle presentation and observation in teaching, with safety protection devices in front door to ensure operator safety.

H. With graver head, cooling and dust catching system, it extends using life effectively and enhances carving recision.

I. Chinese operation software, with memory function during engraving.

J. Removing redundant copper during engraving, enchasing line, saving time and improving efficiency.

K. Multi-function data conversion software, it is suitable for a variety of PCB design software.

L. Isolator and dust cover, with safety device to ensure operator safety.

Technical Parameters:

min line diameter	4mil (0.1mm)
line width	0.15mm
min insulative space	0.15mm
repetition accuracy	0.02mm
min drilling diameter	0.15mm
Transmission resolution	0.001mm
work table	395*300*100mm, work size:600*375mm
the speed of principal axis	10000-60000RPM, Infinitely adjustable
spindle power	200W, can up to 250W
the power of principal axis	150*150*80mm
automatic changing graver, 9 sets graver head, the handle 3mm-3.175mm, can add to max 36pcs tools, automatically install card.
drive	high precision screw with three axis servo controller
flat compensate	make sure board flat and engraving accuracy
light device	With light device to observe engraving process
dust cleaner	professional dust cleaner to ensure inside clean
software	professional automatic changing graver software
with protective cover, can view at 360 angel, also with safety switch to make sure the the safety of operator.
operation system	Win98/2000/XP
min memory	512MB
demission	771*835*805mm
speed of no load	150mm/s
Trough mill speed	10mm/s
Remark	include 1M/P air compressor, 10 sets graver and aiguille
