LED Automatic Chip Mounter Model: LED640

  • Product Description

LED 640 is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.

  • Technical Data Sheet
LED640 summary

1. The first special LED pick and place machine used servo control system in SMT industry.

2. The first special LED pick and place machine used high precision ball screw transmission.

3. The unique LED pick and place machine that can precision mount less than 20mm SOP, Columnar diode, transistor, SOT and 0402 above all component (not include thickness more than 5mm Aluminum electrolytic capacitor).

4. The unique LED pick and place machine that configured self-patent intelligent electronic feeder.

5. The unique LED pick and place machine that can realize program and mount PCB puzzle.

6. The unique LED pick and place machine that can vision program.

7. The unique LED pick and place machine that can offline program.

8. Powerful data input function can meet the need of input any format of PCB.

9. The unique LED pick and place machine that can mount 0402 stably and precision.

10. With safety cover, can effectively protect the operator and prevent the dust.

11. Suit for above 5 types nozzle and software can The software automatically prompt replacement nozzle type.

12. accuracy speed is 10000CPH, 14000CPH.

Remark

● Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

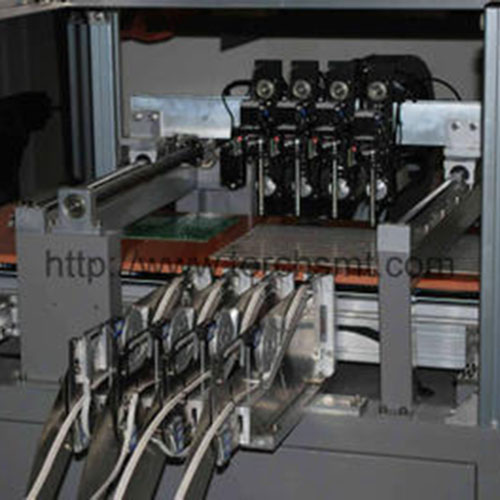

● Mounting head driving system uses servo motor, together with high precision ball screw to achieve the completion of the LED component picking and placing.

● 4 groups of mount head improves production efficiency of 300% than 1 group.

● Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.

● Different sizes of feeder can meet different requirements of LED mount.

● Cost-effective LED chip machine is most suitable for high-volume LED production.

● The whole machine is controlled by industrial computer with professional software, easy to operate and use.

● Easy to import CAD data of the circuit board.

● Stable and easy to complete the programming and placement of LED panel board

● Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.

● The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.

● If the board have manufacturing quality problems, LED640 can shift the component place for accurate mounting.

● Software can realize to achieve automatically four mounting heads function.

● Software increases the XYZ axis detection limit when moves.

● software increases 6 grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability forlong time usage.

● PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC)position and mount. (Optional)

● There is vacuum pump in the machine that no need to configure it separately and save the power, lower the noisy.

Standard configuration

1. Industrial Computer 1 suit

2. Mounting head 4 groups

3. Nozzle 4 pcs

Optional part

1. Automatic feeder 8mm, 12mm, 16mm and 24mm

2. Nozzle

3. Vacuum absorb platform 1 group

Technical Parameters:
Model LED640
Mount head 4 pcs
Max circuit board size 1200*350mm
Max moving range X axis 1500mm, Y axis 410mm
Max moving range of Z axis 15mm
Typical Mounting speed 8000-9600 cph
Max mount speed 12000cph
Mount accuracy +/-0.1mm
Position method Machinery position
Component available 0603and above SMD component and LED
Programme method Automatic data import/ video study/ keyboard input
Belt feeder 8mm, 12mm, 16mm and 24mm
Feeder num 4 pcs of GF series feeder can be set
Operation system WINDOWS XP
Compressed air Vacuum air in machine, no need to add air
Power supply 220V, 50Hz, 4 kW
Weight 360kg
Dimension 2600*680*1500mm
