• Product Description

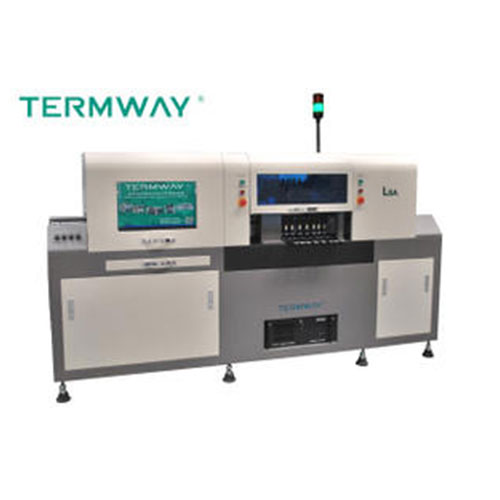

Granite moving chassis + Mount head adjustable patented design=Precision high-speed stability=L8A

What is L8A？

1. L8A is a fully automatic LED placement machine.

2. L8A is a professional LED circuit board placement machine.

3. L8A is an inline LED circuit board placement machine. It can connect with automatic screen printing machine, reflow seamless.

4. L8A is a high speed LED circuit board placement machine. For 1200MM circuit board, Typical Mounting speed 25000-30000cph (3528 component).

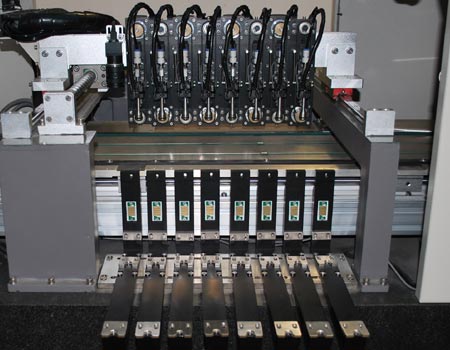

5. L8A is a placement machine with 8 Mounting heads.

6. L8A is a high precision LED circuit board placement machine.

7. model L8A meaning: L means specially used in LED Industry, 8 represents 8 mounting heads. A represents distance of heads can be adjusted according to LED components' distance.

8. L8A is an industrial-grade LED circuit board placement machine, machine chassis is made with natural granite, moving chassis thickness of up to 150mm, flatness tolerance up to 0.009mm, long-term use will not change the mechanical precision, natural granite chassis by long-term natural aging, organizational structure uniform, linear expansion coefficient is extremely small, internal stress completely disappeared, no deformation. This chassis water absorption <0.13%, Shore hardness HS70 above. Ensure the accuracy of the machine using more than a decade.

• Technical Data Sheet

L8A Features:

1. Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

2. Using natural granite design and manufacture of high precision integrated motion platform technology. Mounter ensure long-term use more than a decade, no change movement accuracy. Meanwhile, the integrated structure also has excellent shock resistance.

3. 8 groups of mount head improve production efficiency of 500% than 1 group.

4. Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.

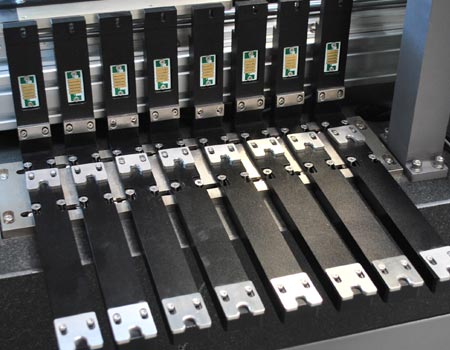

5. Different sizes of feeder can meet different requirements of LED mounting.

6. Cost-effective LED chip machine is most suitable for high-volume LED production.

7. The whole machine is controlled by industrial computer with professional software, easy to operate and use.

8. Easy to import CAD data of the circuit board.

9. Stable and easy to complete the programming and placement of LED panel board.

10．Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.

11. The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.

12. Software can realize to achieve automatically 6/8 mounting heads function.

13. Software increases the XYZ axis detection limit when moves.

14. Software increases multigrades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.

15. PCB platform has vacuum absorb function, which can help largesize PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC) position and mount.

16. The machine achieve the inline transmission of the board, effective laborsaving, efficiency, compared to similar products, you can save at least one operator. If you configure the SP400 Automatic screen printing machine, you can save at least two operators, improve the production efficiency of the entire production line and reduce the cost of long term use at the same time.

Standard configuration:

1. Industrial Computer 1 suit

2. Mounting head 8 groups

3. Nozzle 8 pcs

4. Feeder base GFTA-T08 1 set

Optional part:

1. Automatic feeder 8mm, 12mm, 16mm, 24mm, 32mm

2. Nozzle

3. Industrial air pump/ Silent air pump

4. UPS

5. Feeder platform GFTA-T08 1 set

L8A Technical Parameters:

Max circuit board size	1200×350mm
Max moving range	X axis1500mm, Y axis 410mm
Max moving range of Z axis	15mm
Typical Mounting speed	25000-30000cph(3528 芯片)
Max mount speed	35000cph
Mount accuracy	±0.05mm
Position method	Visual position + Machinery position
Component available	0603 and above SMD component and LED, SOT, SOP
Programming method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm, 12mm, 16mm, 24mm, 32mm
Feeder num	8 pcs of GF series feeder can be set (16 pcs feeders are optional)
Operation system	WINDOWS XP/WIN7(32bit)
Compressed air	80psi (0.5Mpa), gas flow ≥160L / M
Power supply	220V, 50Hz, 4.5kW
Weight	800Kg
Dimension	2510×760×1280mm
