• Technical Data Sheet

The selling point:

1. The only industry have 3 level protection function solder paste mixer.

2. Using TORCH speciaty color spray equipment, China and Germany top engineer design product appearence, have won state patent more than 6 year.

3. The biggest solder paste mixer, casing liner using mufferler design.

4. Electronician controller designed by TORCH.

5. The most improtant using Japanese panosonic motor.

Introduction:

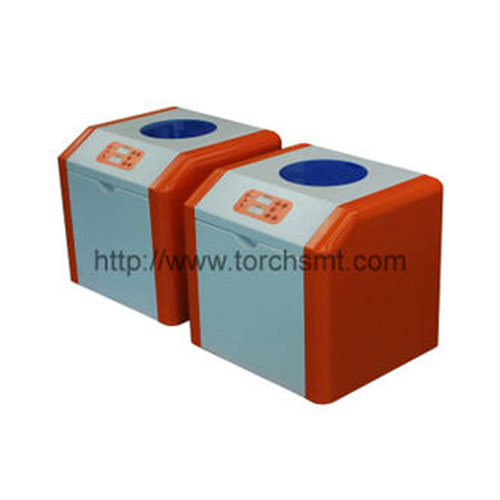

T186 applies revolution and rotation mixing method with motor, effectively mixes the solid state and liquid state equality, to achieve perfect printing and reflow effect, save the manpower. Of course, it not need to open the pot in order to reduce the opportunity of absorbing the vapor.

Product characterristic:

1. Quadruplicity safety design

2. Easy operation

3. Strong applicability

4. Stable and low noisy

Remark:

1. Power supply: AC 220 V 50hz; 6 0 W

2. Speed: revolution: 500RPM rotation: 1000RPM

3. Work capability: 250 *2 tins, 500*2 tins

4. Time enactment: The time number 0.1 ～ 9.9 minutes could be adjustet and remembered after power failure.

5. Display and alarm: LED digital display, lighting and buzzer alarm

6. Operation method: Key-press switch is reliable.

7. Dimension: 420 × 420 × 385 mm(W×D×H)

8. Weight: 35Kg
